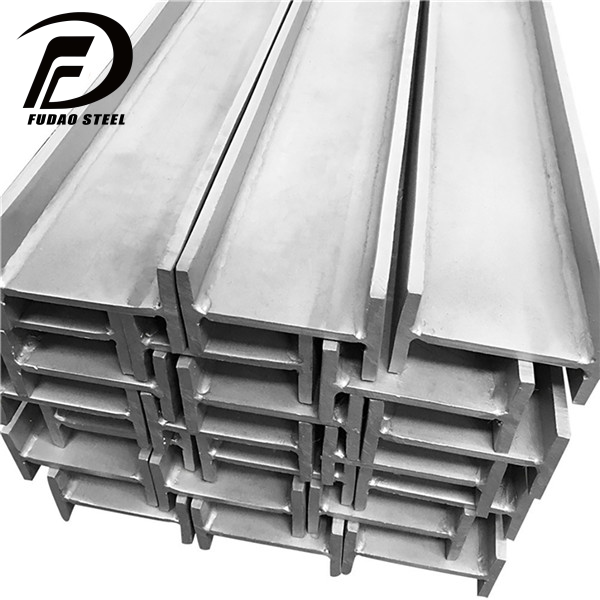

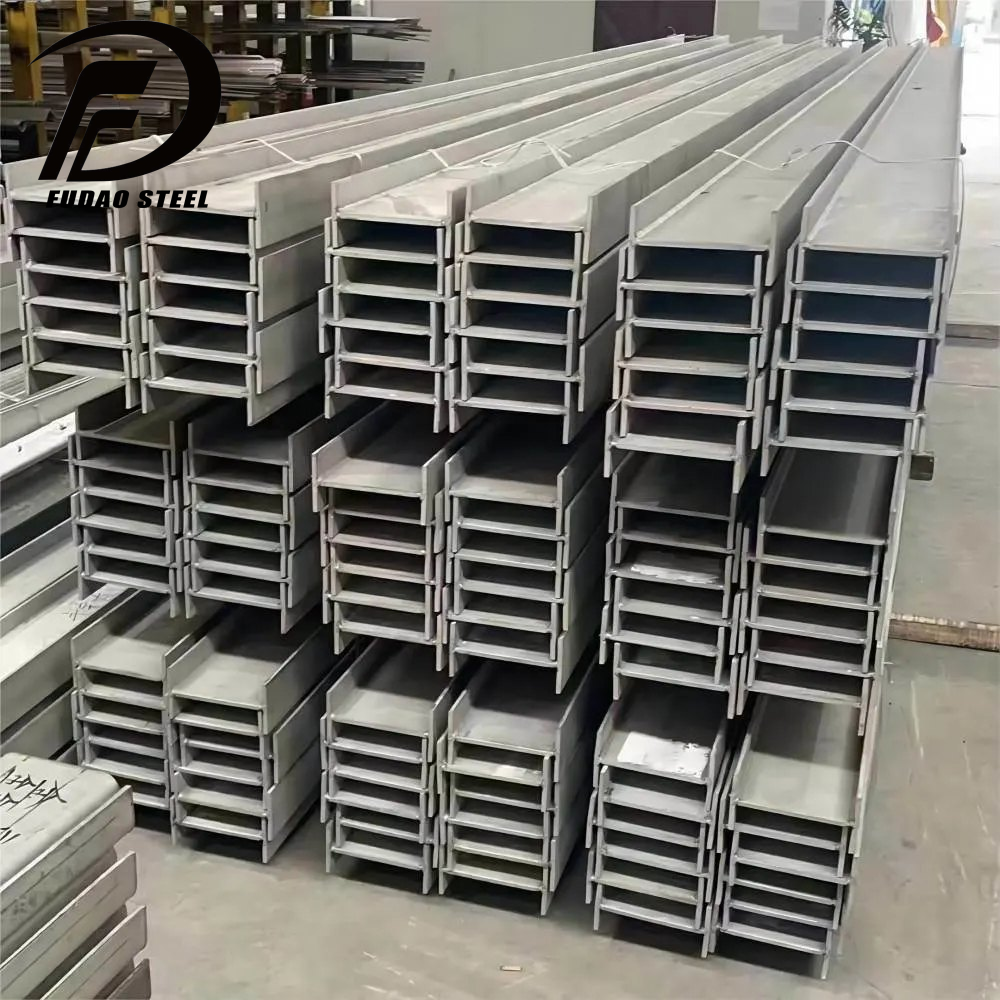

H-beams/I-beams Stainless steel

22/08/2025

‹

  • H-beams/I-beams Stainless steel
  • H-beams/I-beams Stainless steel
  • H-beams/I-beams Stainless steel

›

Product Introduction

Product type: 304/304L/304H, 316/316L/316Ti, 317/317L,321/347/347H, etc
Stainless steel with its good corrosion resistance and good appearance, is widely used in heavy industry, light industry, daily necessities industry and building decoration and other industries have been widely used.

Product parameters

Product type: 304/304L/304H, 316/316L/316Ti, 317/317L,321/347/347H, etc
Stainless steel with its good corrosion resistance and good appearance, is widely used in heavy industry, light industry, daily necessities industry and building decoration and other industries have been widely used.

Stainless steel H-section steel overview

Performance characteristics

Stainless steel H-shaped steel has been widely used in many fields because of its excellent corrosion resistance, high strength and good plasticity.


Product Parameters

Product NameBuilding profile
Scope of Production (H*B)100mm*100mm-900mm*300mm
Length6m, 9m, 12m or acording to customer requirements
TechnologyHot drawing , Welded
StandardASTM, AISI, JIS, GB, DIN, EN
SurfaceGalvanized, Painted or according to your requirements
Supply Capacity2000 tons/Day
Business TypeManufacturer
CertificateISO, SGS, BV
ApplicationWidely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
Loading PortAny port in China
PackagingStandard export packing or as your request
Payment MethodWire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.


Chemical composition of each grade:

Chemical compositionCSiMnCrNiSPMoTi
304≤ 0.08≤1.0≤ 2.018.0～20.08.0～10.5≤ 0.03≤ 0.035__
304L≤ 0.03≤1.0≤ 2.018.0～20.08.0～12.0≤ 0.03≤ 0.035__
316≤ 0.03≤ 0.75≤ 2.016.0～18.010.0～14.0≤ 0.03≤ 0.0452.0～3.0_
316L≤ 0.03≤1.0≤ 2.016.0～18.010.0～14.0≤ 0.03≤ 0.0452.0～3.0_
316Ti≤ 0.08≤1.0≤ 2.016.0～18.010.0～14.0≤ 0.03≤ 0.0452.0～3.00.5～0.7
317L≤ 0.035≤ 0.75≤ 2.018.0～20.011.0～15.0≤ 0.03≤ 0.043.0～4.0_
321≤ 0.08≤ 0.75≤ 2.017.0～19.09.0～12.0≤ 0.03≤ 0.045__
347≤ 0.08≤ 0.75≤ 2.018.0～20.09.0～13.0≤ 0.03≤ 0.04__


Performance data of various grades of metal (for reference only) :

Mechanical PropertiesTensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
304≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV
304L≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV
316≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
316L≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
316Ti≥515≥205≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
317L≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
321≥520≥205≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
347≥515≥205≥ 40≤ 201HB;≤ 95HRB


Physical properties of each grade:

Physical PerformanceDensity(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
3048.0319316.916.272
304L8.0319316.916.272
3167.991931616.274
316L7.991931616.274
316Ti7.991931616.274
317L7.991931616.279
3217.9219316.61672
3477.971931616.372


Specific performance characteristics are as follows:

Corrosion resistance: Stainless steel H-shaped steel can be used in humid, acid and alkali and other harsh environments for a long time without rusting 1.

High strength: It has high tensile strength and yield strength, and is more durable than ordinary H-beam steel.

Aesthetics: The surface is smooth and smooth, with a silver-white color, which can add a modern sense and fashion sense to the architecture and decoration works.

Machinability: easy to process and install, can meet the design of different occasions and structural requirements, improve work efficiency.
