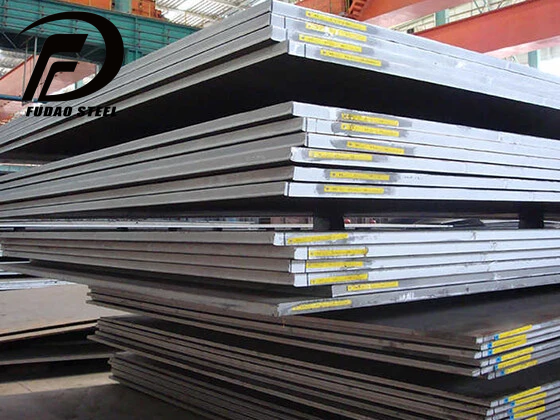

P235GH/P355GH Pressure Vessel Steel Plate

Name: P235GH/P355GH Pressure Vessel Steel Plate
SKU: 0

22/08/2025

Product Introduction

P235GH is a high temperature performance of non-alloy quality steel, the implementation standard :EN10028-2, number :1.0345, with good plasticity, toughness, cold bending and welding properties.
P355GH belongs to the steel plate for medium pressure boiler. It is a kind of steel plate for European pressure vessels, and the implementation standard is EN10028 (European steel plate standard for pressure vessels).

Product parameters

P235GH Delivery status:

P235GH steel plates are usually delivered in normalizing condition. Normalizing rolling can be used instead of normalizing according to the negotiation between the supply and demand parties. In this case, the sample should be simulated normalizing according to the negotiated test frequency to verify that the performance meets the requirements.

Steel plates shall be delivered by cutting or flame cutting

P355GH delivery status; Delivery in a heat treatment (normalizing, annealing or high temperature tempering) or no heat treatment condition, the delivery status should be indicated in the warranty

Product information:

Name	P235GH/P355GH Pressure Vessel Steel Plate
Production Process	Steel plate for pressure vessels
Width	1000mm,1250mm,1500mm,2000mm，Or customized Size
Length	1m-12m, or Customized Size
Thickness	2.0mm，4.0mm，5.0mm，6.0mm，8.0mm，10.0mm，12.0mm，14.0mm，16.0mm，20.0mm，Or customized Size
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Standard	AiSi, ASTM, bs, DIN, GB, JIS
Certificate	CE, tisi, KS, JIS, GS, ISO9001
Delivery Time	within 3-5 days
Surface Process	Ordinary, Wire Drawing, Laminated Film

P235GH Chemical Composition (%)	C≤	Si≤	Mn	P≤	S≤	Cu≤	Cr≤
	0.16	0.35	0.60-1.20	0.025	0.01	0.3	0.3
	Ni≤	Nb≤	V≤	Ti≤	Mo≤	N≤	ALt≥
	0.3	0.02	0.02	0.03	0.08	0.012	0.02

P235GH steel plate supply specifications:

Thickness :8mm-200mm Width: 1500mm-4200mm Length: 6000mm-15000mm

Mechanical Properties
Thickness/mm	Tensile strength(MPa)	Yield strength (MPa)	Elongation(%)
≤16	235	360-480	24
16-40	225
40-60	215
60-100	200
100-150	185	350-480
150-250	170	340-480

----------------------------------------------------------------

P355GH Chemical Composition (%)	C	Si	Mn	P	S	Cu
	0.10-0.22	≤0.36	1.00-1.70	≤0.025	≤0.03	≤0.30
	Ni	Nb	V	Cr	Mo
	≤0.30	≤0.01	≤0.02	≤0.30	≤0.10

Material	Supply status	Thickness/mm	Tensile strength(MPa)	Yield strength (MPa)	Elongation(%)	Impact work Akv/J,20℃
						000-20℃	0℃	000+20℃
P355GH	+N*	≤16	≥355	510-650	≥20	≥27	≥34	≥40
		16-40	≥345
		40-60	≥335
		60-100	≥315	490-630
		100-150	≥295	480-630
		150-250	≥280	470-630

Stock specification sheet
Data (Thickness-width-length)/mm	Sort	Inventory/tons	Data (Thickness-width-length)/mm	Sort	Inventory/tons	Data (Thickness-width-length)/mm	Sort	Inventory/tons
0.410002000	Cold rolling	78	515004000	Hot rolling	150	2522009050	Hot rolling	300
0.67502000	Cold rolling	69	615004000	Hot rolling	230	3022009150	Hot rolling	120
0.89102000	Cold rolling	121	820008000	Hot rolling	96	3522008900	Hot rolling	224
1.010002000	Cold rolling	108	1022008500	Hot rolling	220	40220010500	Hot rolling	86
1.510002000	Cold rolling	54	1222008900	Hot rolling	52	4522009500	Hot rolling	340
2.010002000	Cold rolling	96	1422008100	Hot rolling	104	5022008700	Hot rolling	170
2.510002000	Cold rolling	112	1622008900	Hot rolling	76	6022008950	Hot rolling	245
3.010002000	Cold rolling	167	1822008650	Hot rolling	175	8022008500	Hot rolling	244
4.010002000	Cold rolling	56	2022008950	Hot rolling	210

Our main products are all kinds of carbon steel, stainless steel, alloy, pre-coated sheet, pipe, parts and other products. If you have other related steel products, please send an email to our company's main mailbox, we will have a professional sales manager in the first time to reply.
