Torispherical Head

Torispherical head (or flanged and dished head), These heads have a dish with a fixed radius (r1), the size of which depends on the type of torispherical head. The transition between the cylinder and the dish is called the knuckle. The knuckle has a toroidal shape.

These heads have a dish with a fixed radius, the size of which depends on the type of torispherical head. The transition between the cylinder and the dish is called the knuckle. The knuckle has a toroidal shape.

Vessel dished ends are mostly used in storage or pressure vessels in industry. These ends, which in upright vessels are the bottom and the top, use less space than a hemisphere (which is the ideal form for pressure containments) while requiring only a slightly thicker wall.

Torispherical Head Product Specification

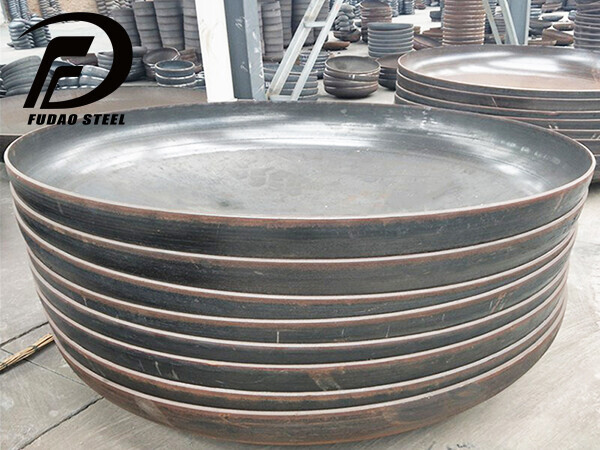

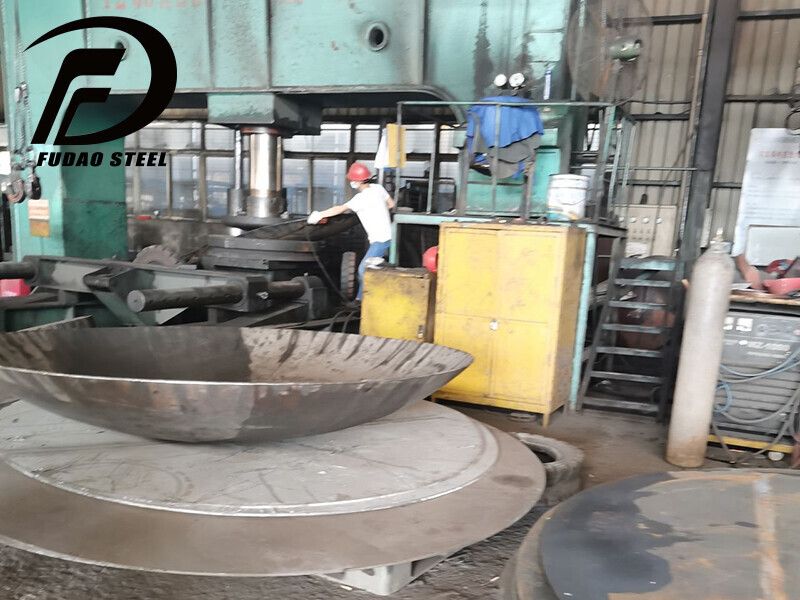

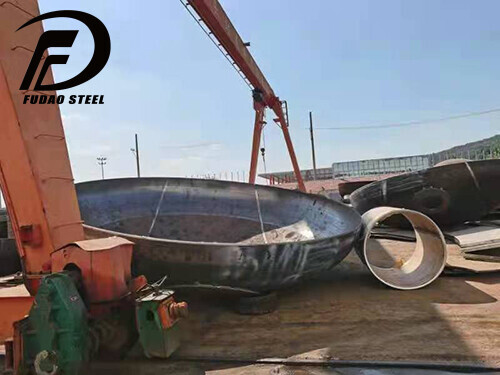

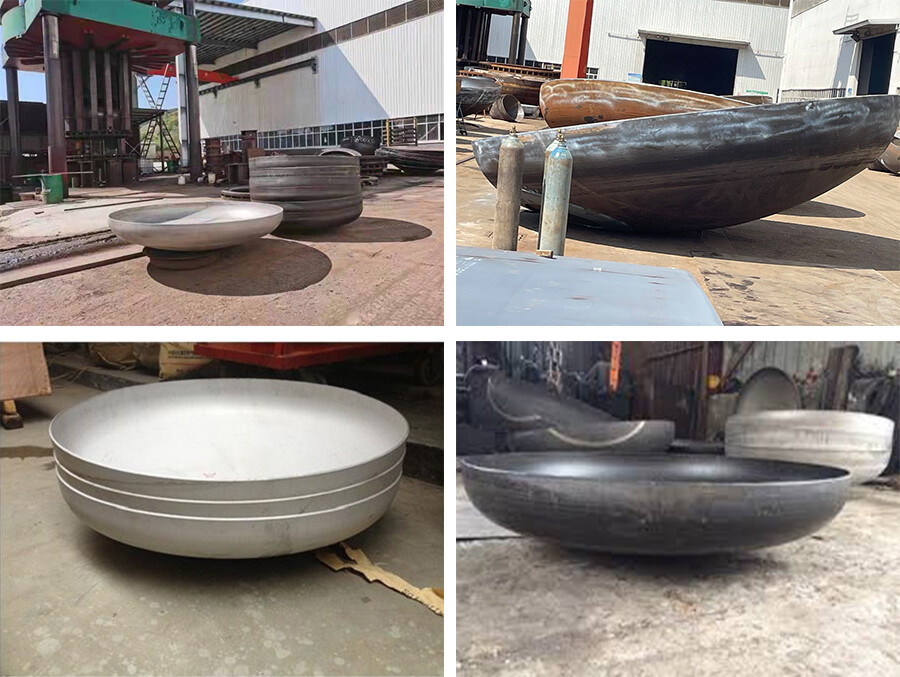

Torispherical Head Photos

Material:

Carbon steel tank ends/caps, Flat Dished Head: SA516 GR60N,GR70N

Stainless steel ELLIPSOIDAL DISHED END, elliptical tank head: SA240 304, 316

Titanium alloy Pressure Vessel Ends: SB256 GR1, GR2, GR5

Application:

Petroleum, electronics, chemicals, pharmaceuticals, light textiles, food, machinery, construction, nuclear power, aerospace, military industry

Pressure vessel Dished heads, Boilers Ends caps, ellipsoidal dished end, Heat exchanger Elliptical head, Crown radius of Ellipsoidal head

Carcasa del intercambiador de calor, Cabezal del recipiente a presión, Recipientes a presion, etc

Our torispherical dish end have a variety of sizes and can be processed according to customer's requirements.

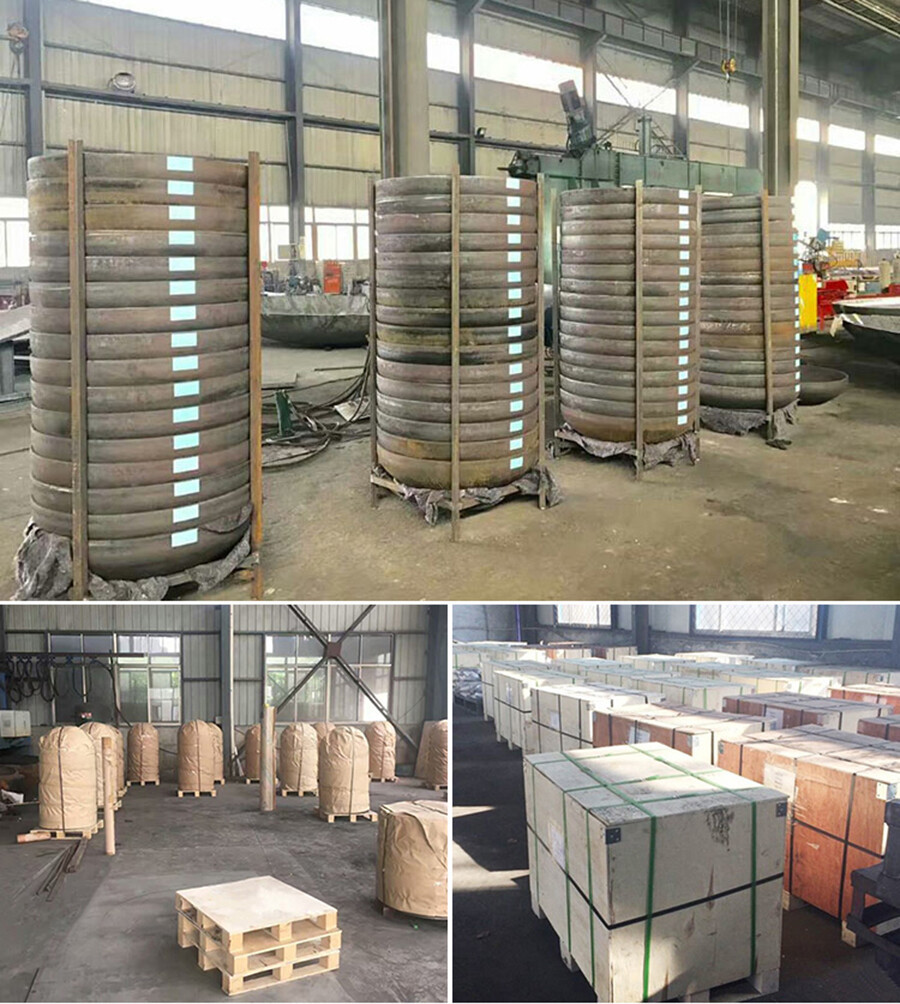

Torispherical Head Package & Delivery
